Air and dirt separators are important components in sealed heating and cooling systems. They help remove air, micro-bubbles, dirt particles, and sludge from system water, supporting better performance, lower maintenance, and longer service life of pumps, boilers, chillers, valves, control equipment, and other HVAC accessories.
Expert Power supplies Flamco Air & Dirt Separators in the UAE for HVAC, chilled water, heating, district cooling, commercial, industrial, and building services applications.
For expansion products, see: Flamco Expansion Vessels.
In heating and cooling systems, air and dirt can build up inside the water circuit over time. Air can cause noise, corrosion, poor circulation, and reduced heat transfer. Dirt particles can damage pumps, boilers, chillers, valves, and control equipment.
Air and dirt separators are installed in the system to continuously remove these unwanted particles from the water. This helps improve comfort, protect equipment, reduce energy loss, and maintain efficient system operation.
Proper air and dirt separation helps maintain clean and efficient system water. It is especially useful in new systems, old installations, and systems converted from open to closed circuits.
Air and dirt separators help to:

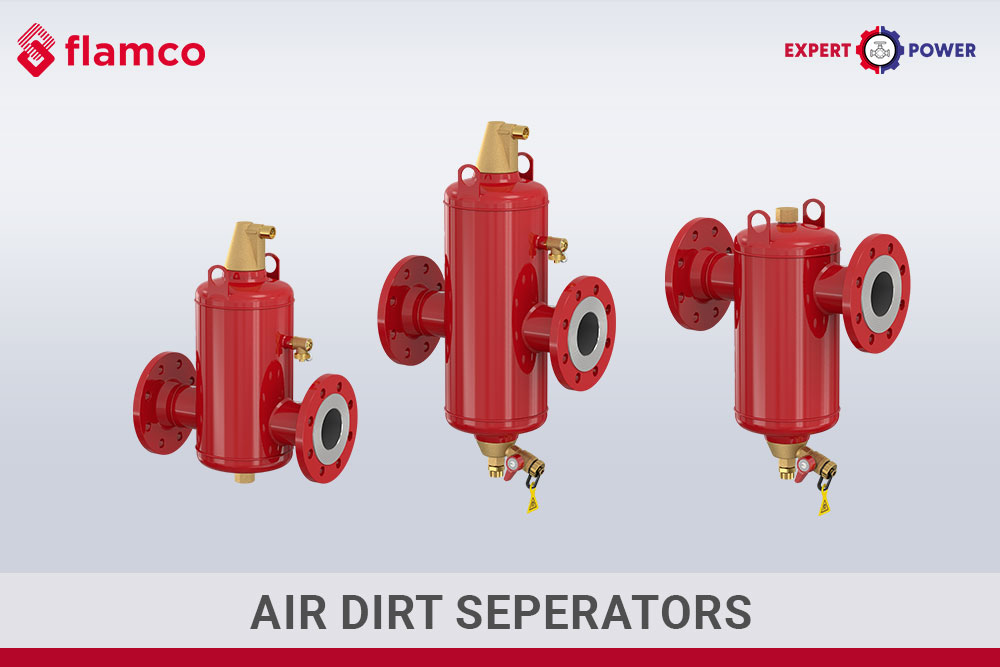

The Flamco Smart Air Separator, also known as Flamcovent Smart F, is designed for optimum deaeration in heating and cooling installations. It removes air and micro-bubbles from system water while supporting energy-efficient operation.
Air separators increase comfort and improve system yield by removing air from the water circuit. The removal of air also helps extend the service life of pumps, control equipment, and other system accessories.
The steel Flamcovent Smart air separator removes even the tiniest micro-bubbles from installation water. It performs up to 60% better than conventional air separators, while keeping flow resistance extremely low.
The Flamco Smart Dirt Separator, also known as Flamco Clean Smart F, is designed for optimum dirt separation in sealed heating and cooling systems. It removes dirt particles from system water and helps protect boilers, pumps, fittings, valves, and other system components from damage caused by deposits.
Dirt separators are especially useful where system water contains sludge, metal particles, installation debris, or contamination from older pipework. By removing dirt particles, the Flamco Clean Smart helps improve system reliability and extends the service life of connected equipment.
The steel Flamco Clean Smart dirt separator removes even miniscule dirt particles from installation water. It performs up to 60% better than conventional dirt separators, while keeping flow resistance at a negligible level.
The Flamco Smart Combined Separator, also known as Flamcovent Clean Smart F, combines air separation and dirt separation in one unit. It is designed for sealed heating and cooling systems where both micro-bubbles and dirt particles need to be removed from the system water.
This combined separator helps protect boilers, pumps, fittings, valves, and control equipment while also improving comfort and system yield. It is suitable for systems where space-saving installation and complete system water protection are required.
The steel Flamcovent Clean Smart separator removes even the tiniest micro-bubbles and minuscule dirt particles from system water. It performs up to 60% better than conventional air and dirt separators, while keeping flow resistance extremely low.
The Smart Air Separator is used when the main requirement is removing air and micro-bubbles from system water.
The Smart Dirt Separator is used when the system needs protection from dirt, sludge, and fine particles.
The Smart Combined Separator is used when both air and dirt removal are required in one compact unit.
Selecting the right Flamco separator depends on the system type, water quality, available installation space, flow rate, connection requirement, pressure rating, and project design.
Flamco Smart Air and Dirt Separators support efficient, reliable, and low-maintenance HVAC system operation. Their low flow resistance helps reduce unnecessary energy loss, while their high separation performance helps protect valuable system components.
Key benefits include:
Flamco Air and Dirt Separators are suitable for a wide range of UAE projects, including:
In UAE buildings, chilled water and cooling systems are critical for daily operation. Proper air and dirt separation helps maintain system performance, reduce breakdowns, and protect HVAC equipment.
Expert Power supplies Flamco Air and Dirt Separators for MEP contractors, HVAC companies, facility management teams, industrial clients, and building projects across the UAE.
We supply:
Smart Air Separator
Smart Dirt Separator
Smart Combined Separator
Expert Power can support your requirements for Flamco separators, expansion vessels, pressurisation products, air vents, safety valves, and other heating and cooling system accessories.
Air and dirt separators are essential for maintaining clean, efficient, and reliable heating and cooling systems. By removing air, micro-bubbles, dirt, and sludge from system water, they help protect equipment, reduce maintenance, improve comfort, and support long-term performance.
For UAE HVAC and building services projects, Expert Power supplies Flamco Smart Air Separators, Smart Dirt Separators, and Smart Combined Separators for reliable air and dirt separation in sealed heating and cooling systems.
